Post-Symptom Event Recording

FEATURES:

  • Simple operation
  • Small & lightweight, less than 3 ounces
  • Programmable memory modes
  • Advanced baseline correction

BENEFITS:

  • Improved ECG signal quality
  • Over 500 recordings and transmissions on a single battery
  • Compatible with all analog receiving equipment
  • Ergonomic design improves patient compliance
  • Auto-Erase option improves ease of use

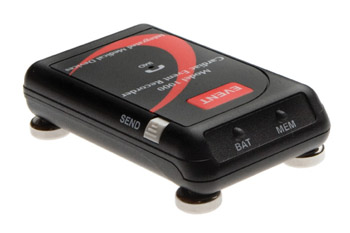

QRST announces the latest technology in post-symptom event recording. The Model 1000 Event Recorder is a compact, lightweight transtelephonic ECG recorder designed to document the patient's post-symptom cardiac activity.

The monitor is designed for easy patient operation, and features a battery life of over 500 events. The optional Auto-Erase feature improves ease of use by eliminating the need for the patient to manually erase the memory. Using advanced computer controlled baseline correction, the Model 1000 Event Recorder offers the highest quality electrocardiogram available.
PHYSICAL SPECIFICATIONS:

Length: 3.30 inches
Width: 1.95 inches
Thickness: 0.68 inches
Weight: 2.4 ounces

BATTERY SPECIFICATIONS:

Battery Type: (1) CR2032 Lithium Coin Cell
Battery Life: 500 Events (Recordings & Transmissions)

MEMORY SPECIFICATIONS:

8 different programmable memory modes

ELECTRICAL SPECIFICATIONS:

Frequency Response: 0.5 to 30 Hz
CMRR: 70 dB (min.)
Input Dynamic Range: ± 2.5 mV
Resolution: 8 bits, 100 s/s

TRANSMISSION CHARACTERISTICS:

Method: Frequency Modulation
Center Frequency: 1500 Hz (± 1%)
Deviation: 100 Hz/mV (± 1%)
